QV11

5 stars product

11,1-3,8 kW

Natural convection or Forced ventilation

A+Energy efficiency class
Ecodesign 2022

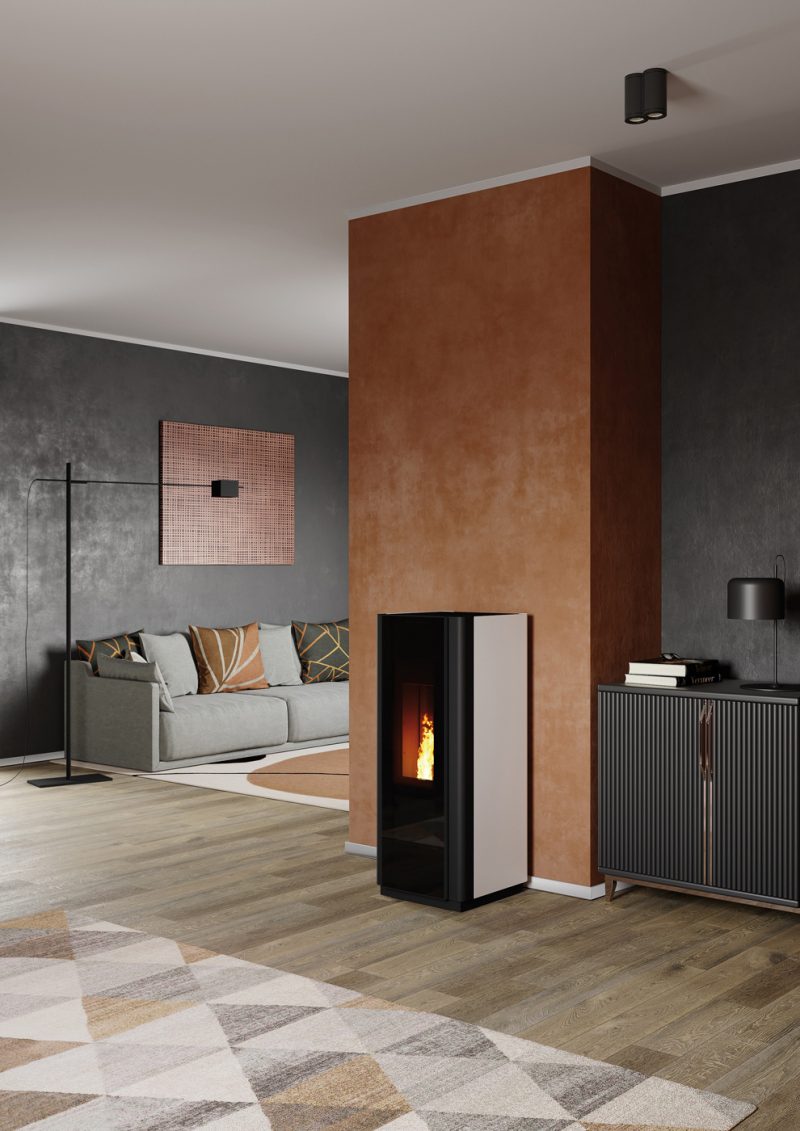

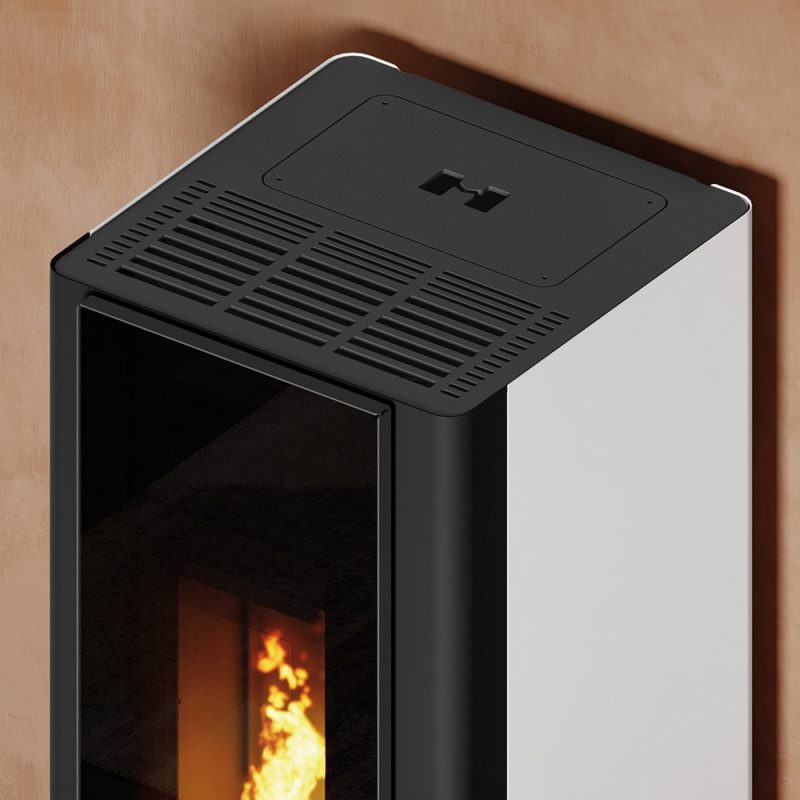

Pellet stove with painted steel coating modelled and finished by hand.

Available in white, black and red, it stands out for the harmony of its shapes and the play of contrasting colors which confer elegance and a strong technical character.

  • Natural convection
  • Glass cleaning
  • Sealed stove
  • Cast iron stove
  • Cast iron brazier
  • Double door
  • Forced ventilation
  • Possibility to exclude the ventilation at powers 1-2-3
  • Radio control
  • WIFI module for remote control
Request information
SKU: QV11 Category:
  • Total heat output:max 11,1 - min 3,8 kW
  • Nominal heat output:max 10,0 - min 3,6 kW
  • Efficiency:Pmax 90,0% - Pmin 94,5%
  • CO emission at 13% O2 (%):Pmax 0,017% - Pmin 0,014%
  • Pellet consumption:max 2,4 kg/h - max 0,8 kg/h
  • Reservoir capacity:19 kg
  • Heatable room volume:170-260 mc
  • Minimum distances from flammable walls:side: 25 cm - retro: 20 cm - front: 100 cm
  • Voltage / Frequency:230V - 50Hz
  • Rated input power:350 W
  • Weight:98 kg
  • Complies with:EN14785 - LRV/VKF - BImSchV II
  • Flue:rear
Technical Drawing

A = Ø 80 mm Flue
B = Ø 40 mm Combustion air

Depliant

Technical Sheet

Declaration of Performance (DoP)

ErP – Label

ErP – Product Information Sheet
